40pin IO Extender

The 40pin IO Extender is a compact ribbon cable for connecting Raspberry Pi to daughter boards. We are selling the gray version.

Key Featured

• Compatibility: Works with Raspberry Pi 400 and other models needing a 40pin IO connection.
• Design: 100mm ribbon cable for Pi 400.
• Ease of Use: Simple daughter board connection.
• Anti-reverse-plugging: Black male connector ensures correct orientation.
• Clear Marking: Grey female connector has laser-marked pin numbers for accurate alignment.
• Protection Function: Prevents damage with correct insertion guidance.
• Colour Options: Available in grey and rainbow.
• Environmentally Friendly: RoHS compliant materials.

40pin IO Extender supports Raspberry Pi400 and other Raspberry Pi Computers which need to connect 40pin IO signals with daughter boards.

40pin GPIO Extender is a 40pin ribbon cable with 100mm length specially designed for Raspberry Pi 400. It is used to lead 40pin GPIO signals from Pi 400 to a female 40pin connector, the user is very easy to connect their daughter to Pi400.

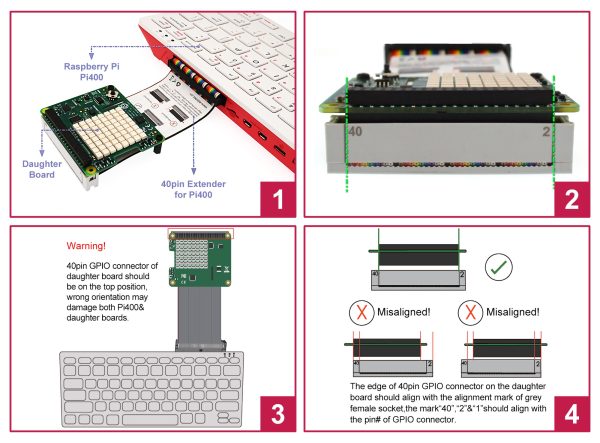

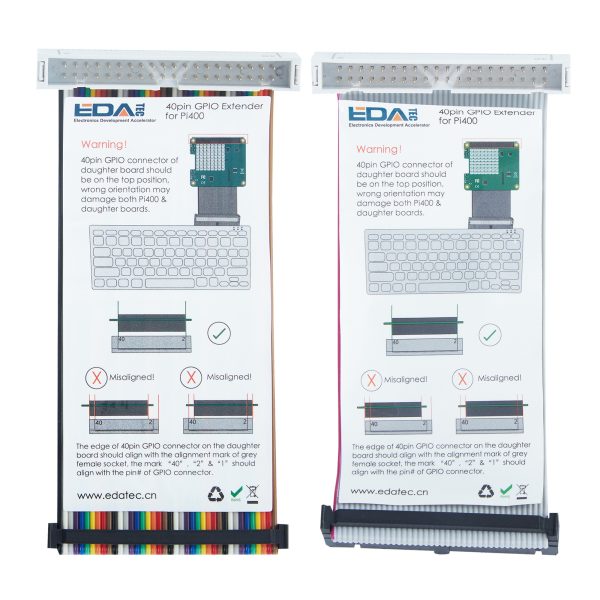

The 40pin black male connector with anti-reverse insertion at one end is to connect 40pin female connector at the back of Pi 400, a 40pin grey female connector at another end are marked the pin# 1,2 & 40 and alignment mark by laser machine, those marks are used to remind the users to insert the daughter board at the right orientation and position. Wrong orientation and misalignment will cause damage of Pi 400 and daughter board.

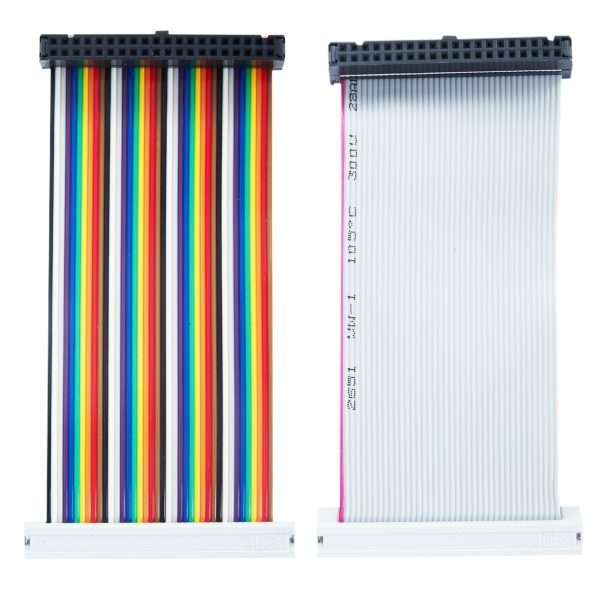

The ribbon cable are Grey and rainbow color optional. All of materials are used on the cable are RoHS Compliant.
