Active Cooler for Raspberry Pi CM5

Active cooler specifically designed for the Raspberry Pi CM5.

Key Featured

• Aluminium profile, CNC cut, easy to install
• Active Cooler with a temperature-controlled blower fan and pre-installed with thermal conductive silicone
• Excellent cooling performance to reduce the temperature of Raspberry Pi CM5 CPU, Wi-Fi module and power management chip

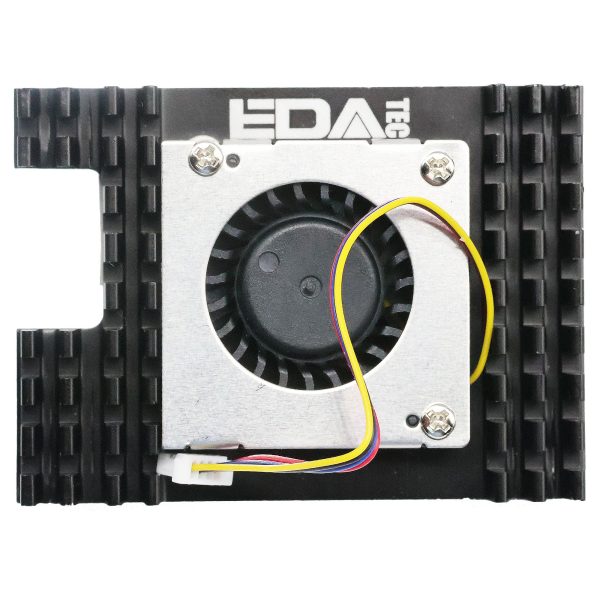

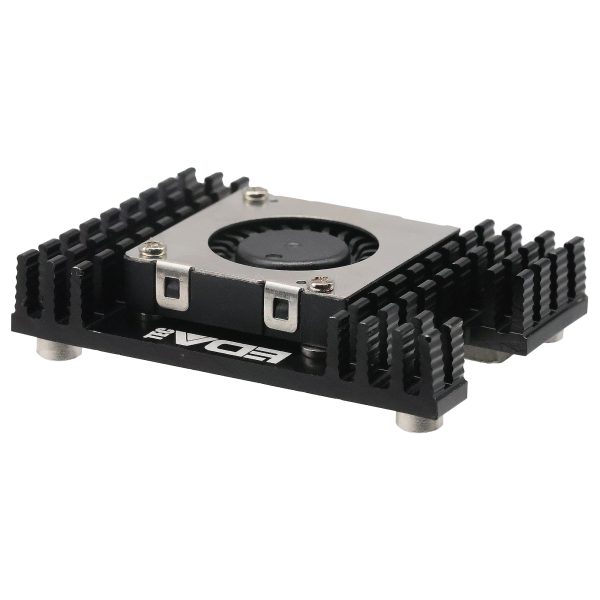

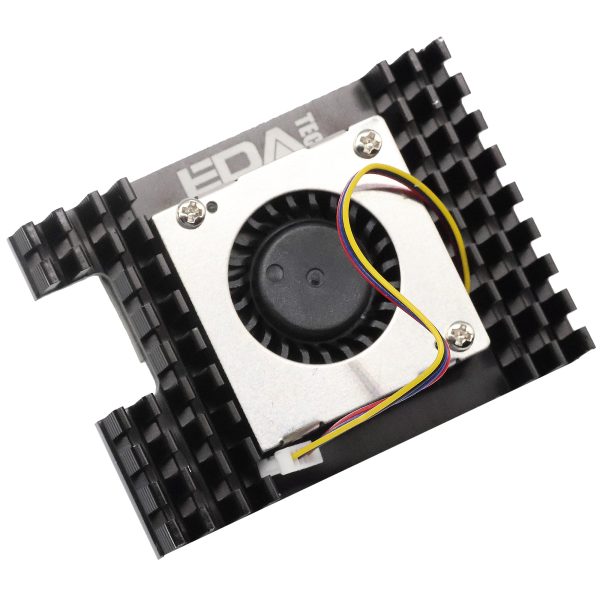

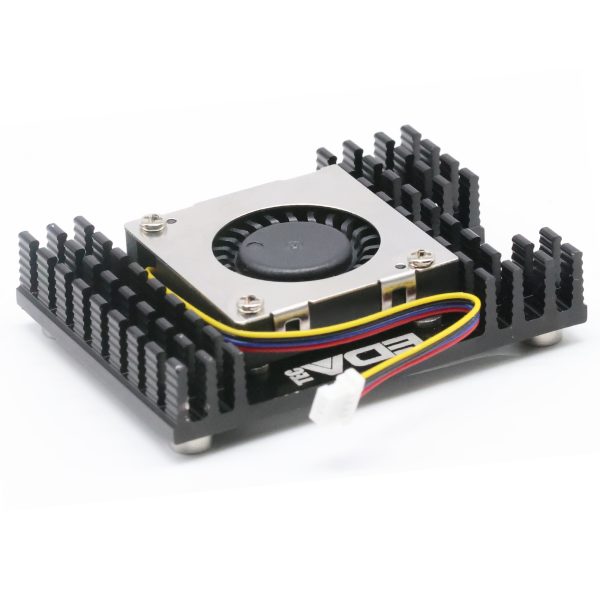

The ED-CM5ACOOLER is an active cooler for the Raspberry Pi CM5, featuring:

• Aluminum construction for durability and heat dissipation.
• Temperature-controlled fan that adjusts speed based on temperature.

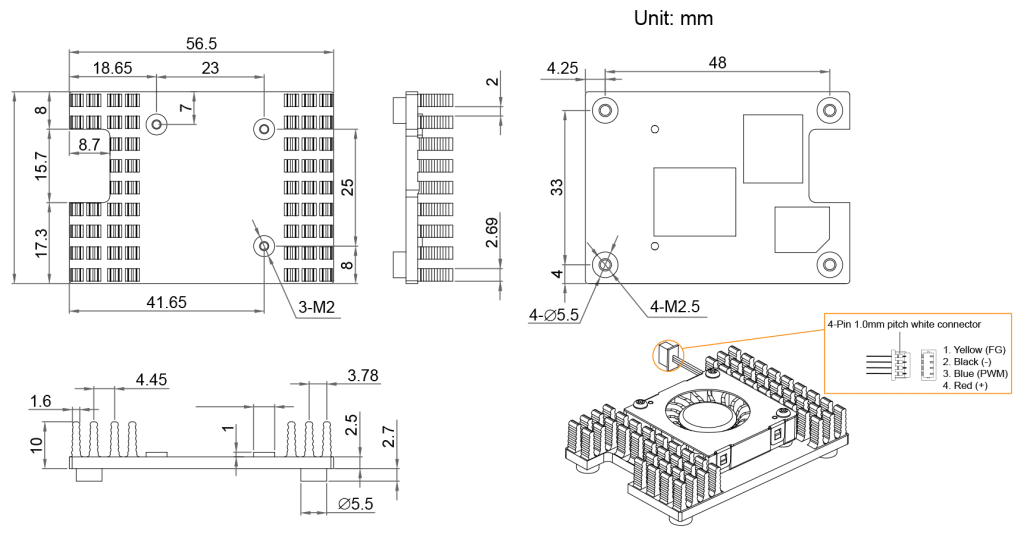

• Dimensions: 56.5mm x 41mm x 14.1mm, weighing 31g.

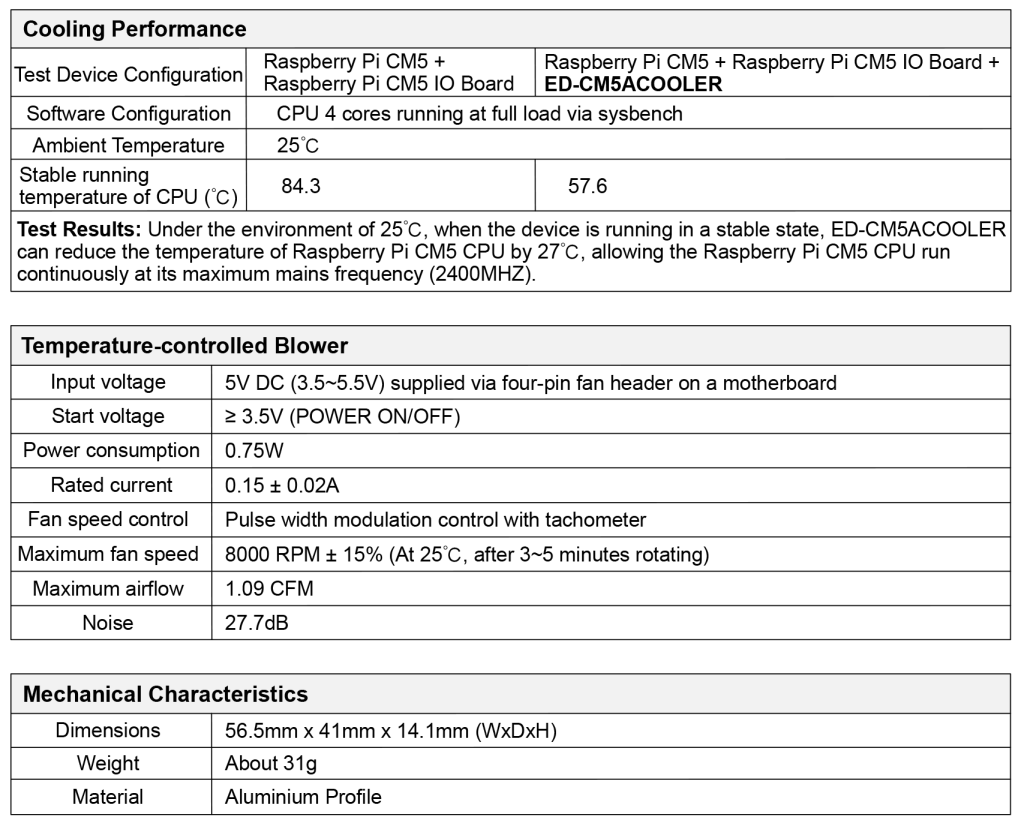

• Fan specs: 5V DC input, max 8000 RPM, 1.09 CFM airflow, 27.7dB noise.
• Cooling performance: Reduces CPU temperature by 27℃ in a 25℃ environment.
• Installation: Easy with included screws and nylon gaskets.
• Ordering: Comes with an accessory set for mounting.

Resources

ED-CM5ACOOLER Datasheet-EN-2024.10.18.pdf
ED-CM5ACOOLER Cooling Performance Test Report.pdf
