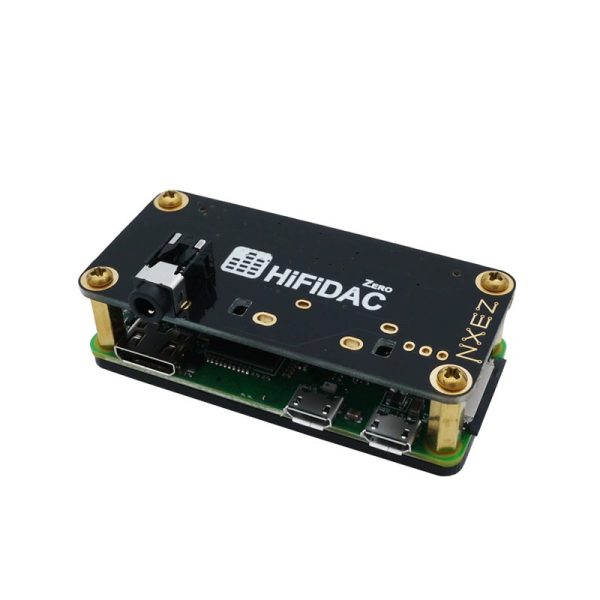

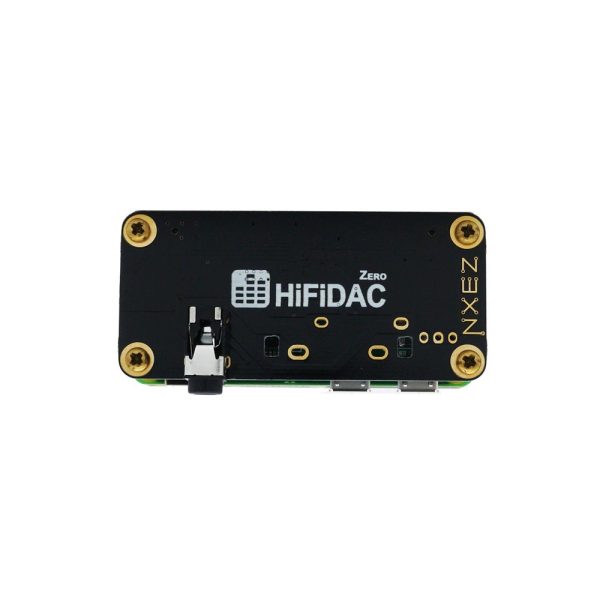

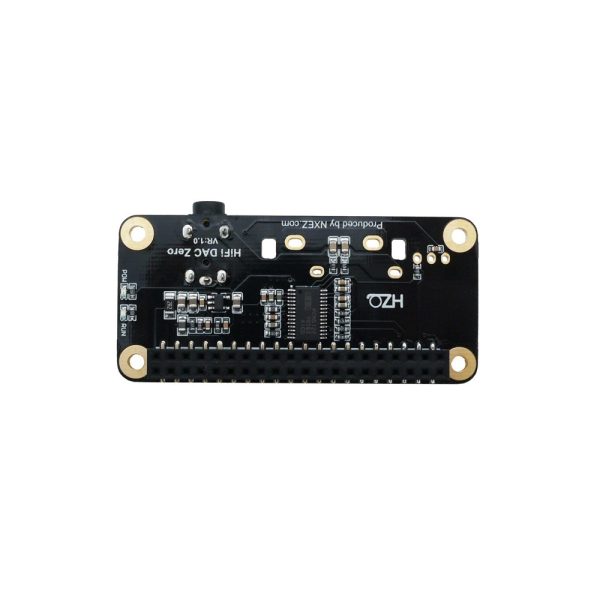

HIFi DAC Zero integrates TI’s professional-grade audio decoding chip PCM5122 and adopts the I2S interface standard to create a complete Raspberry Pi-based hardware audio decoding system. It supports powerful playback software such as Volumio, MoodeAudio, and OSMC, making it the ideal choice for quickly building a Raspberry Pi HiFi system!
This product is fully compatible with the Raspberry Pi 5, 4B, 3B, 3A+, 2B, and Zero series, as well as future Raspberry Pi models that comply with the same standard. For optimal usability, we recommend using it with a Raspberry Pi equipped with a Wi-Fi module.
Features
- Premium Audio Decoding:
Features TI’s professional-grade PCM5122 DAC chip, supporting 32-bit/384kHz high-resolution audio with 112dB dynamic range and ultra-low -93dB THD+N distortion. - Advanced Power Design:
Incorporates ultra-low-noise voltage regulation and ferrite bead ground isolation technology to eliminate interference and completely remove ground loop noise. - Dual Output Options:
- Standard 3.5mm headphone jack

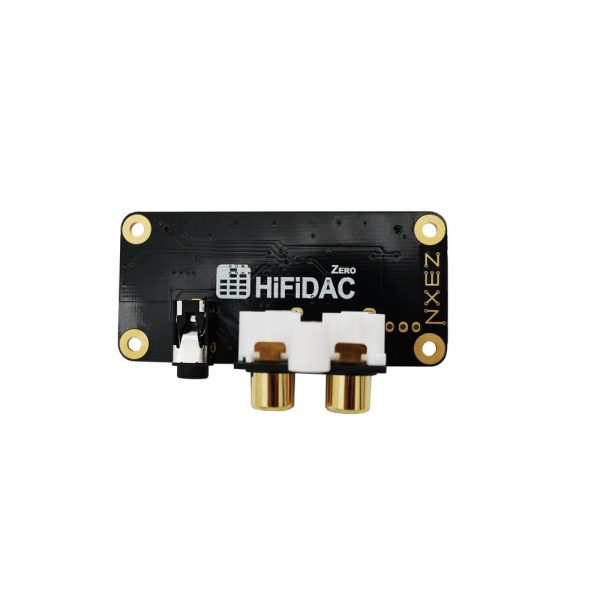

- Pre-installed RCA jack output solder pads (supports amplifier/speaker connections)
- Direct I2S Interface:
Plug-and-play installation on Raspberry Pi via native I2S bus (superior to USB DAC solutions) for direct digital-to-analog conversion. - Operation Status Indicator:
Built-in LED clearly displays DAC working status:- Illuminated during active decoding
- Off when idle or powered down
- Premium Components:
Uses authentic imported electronic components to ensure optimal performance and long-term reliability. - Optimized Circuit Design:
- Fully compatible with Raspberry Pi ZERO form factor
- High-quality gold-plated PCB with impedance-matched traces
- Minimized signal reflection/refraction through optimized layout
- ZERO Version Features:
- Sleek hidden-component design for clean aesthetics
- Compact and elegant appearance
Note: It’s not include a Raspberry Pi.
Resources
Get started with the HiFiDAC for Volumio
Get started with the HiFiDAC for MoodeAudio
